Features

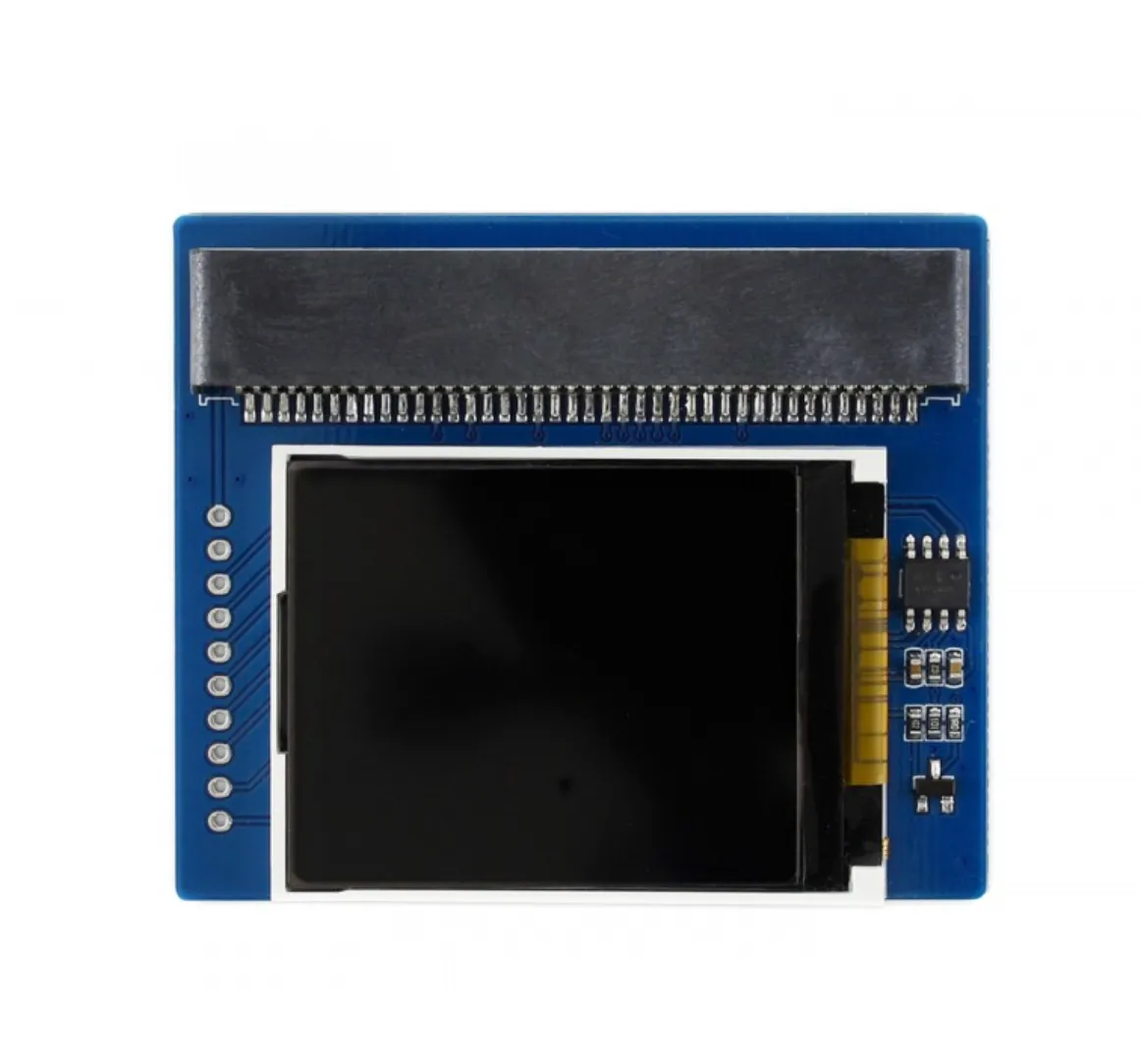

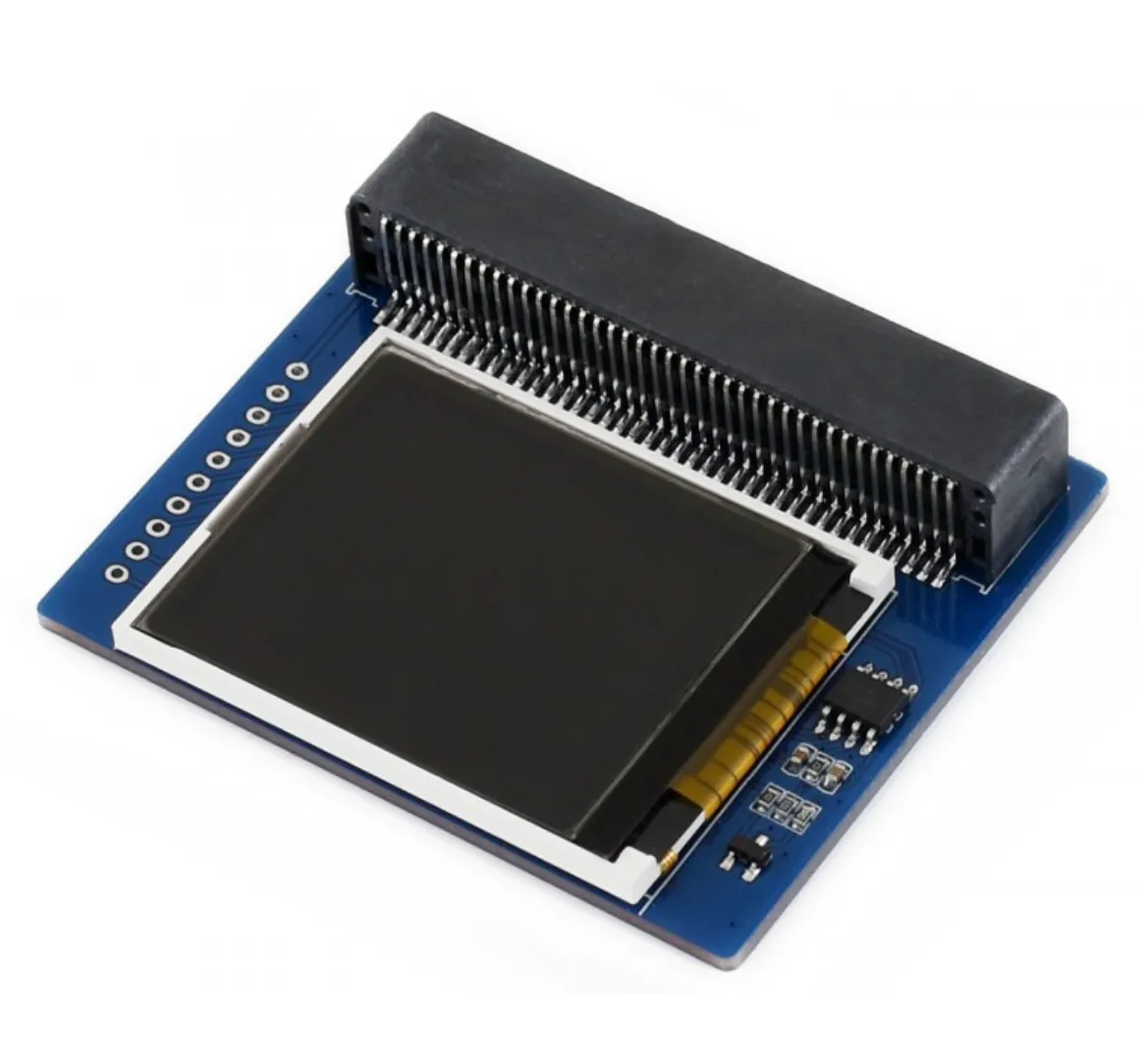

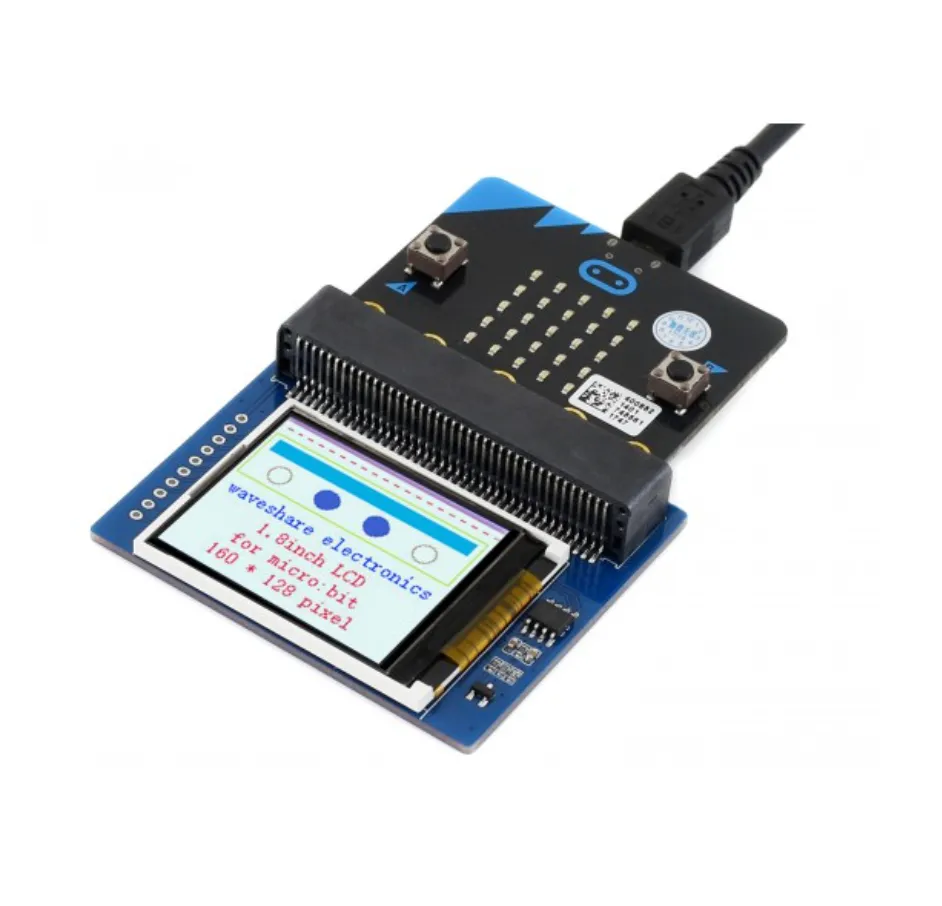

• micro:bit edge connector, directly pluggable
• Embedded driver ST7735S, supports 65K colors
• Onboard SRAM 23LC1024, used as display cache, no more out of memory
• SPI interface takes up only a few IO pins
• Backlight adjustment via PWM

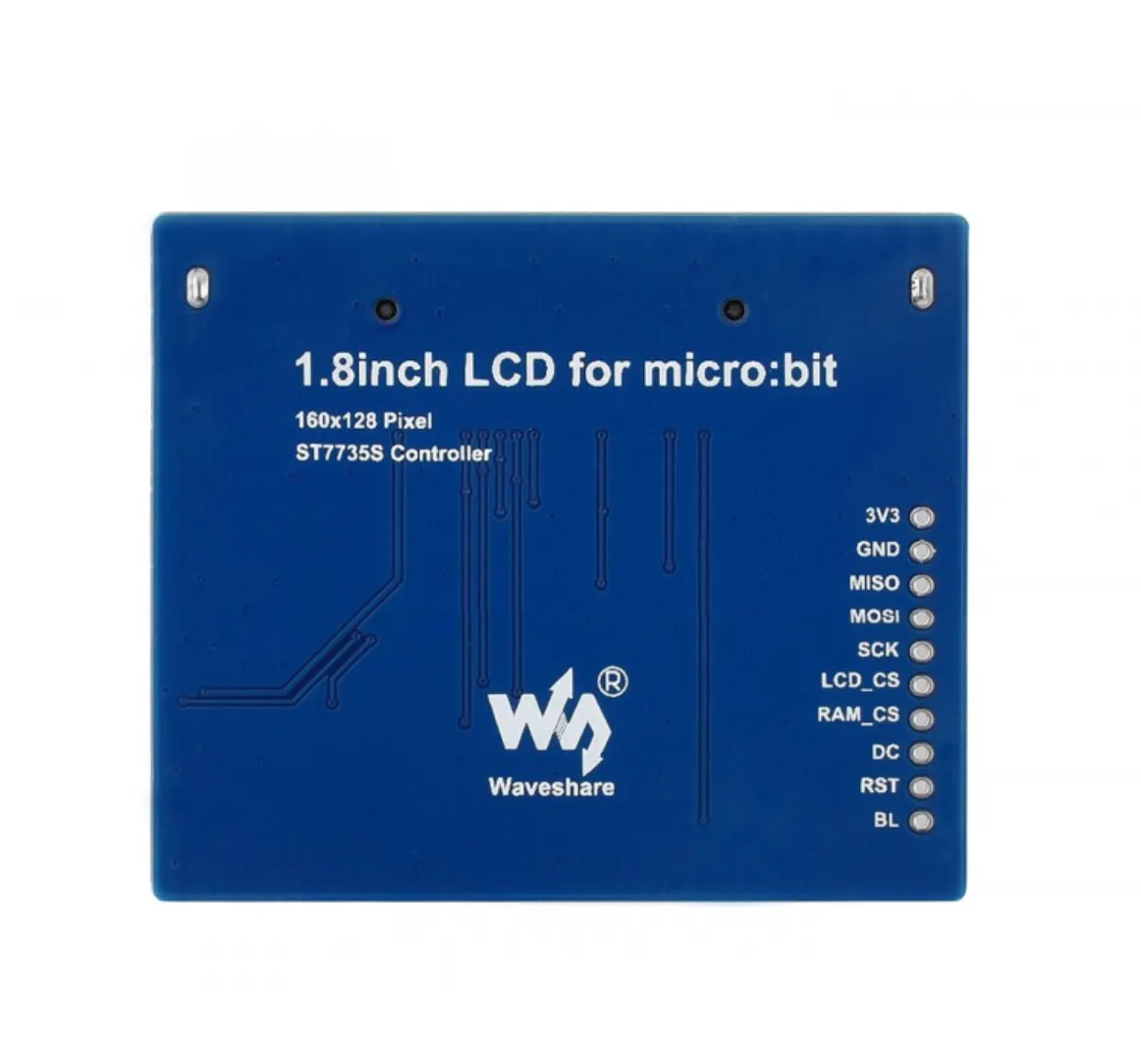

• Reserved solder pads for the control interface, make it easy to connect with Arduino/Nucleo boards
• Comes with development resources (micro:bit graphical demo/user manual, etc.)

Specifications

• Driver: ST7735S
• Resolution: 160x128
• Display color: RGB, 65K colors
• Operating voltage: 3.3V
• Dimension: 61mm x 51.5mm
