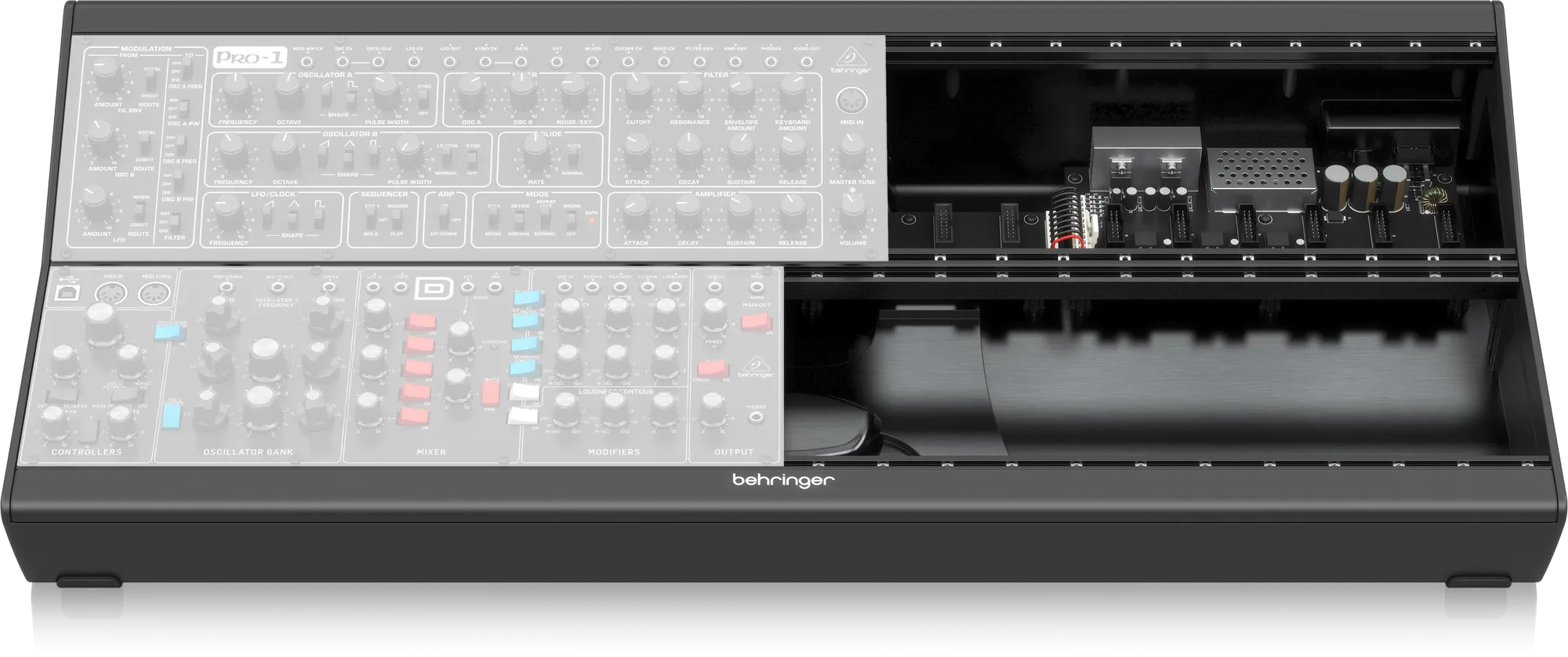

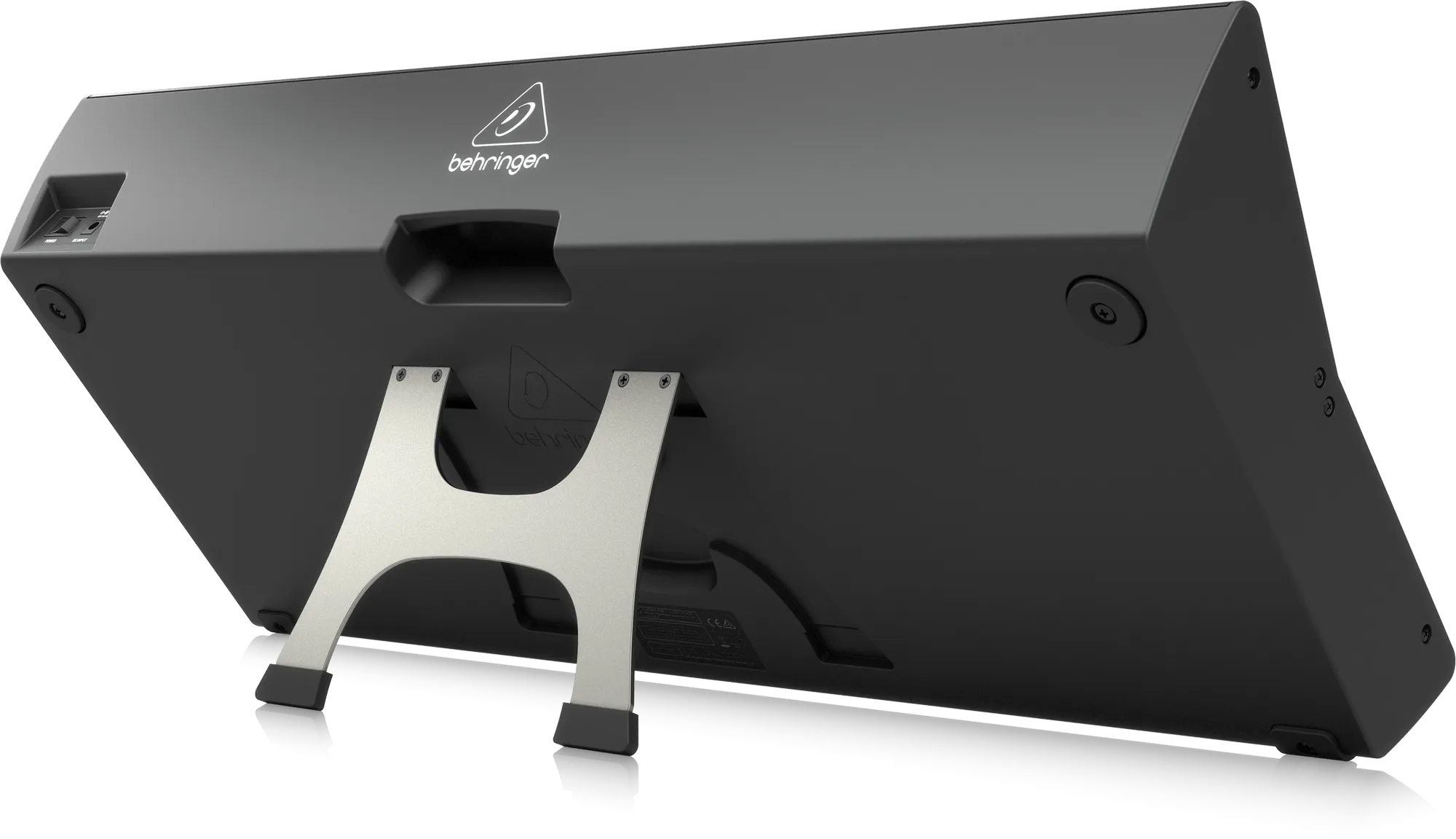

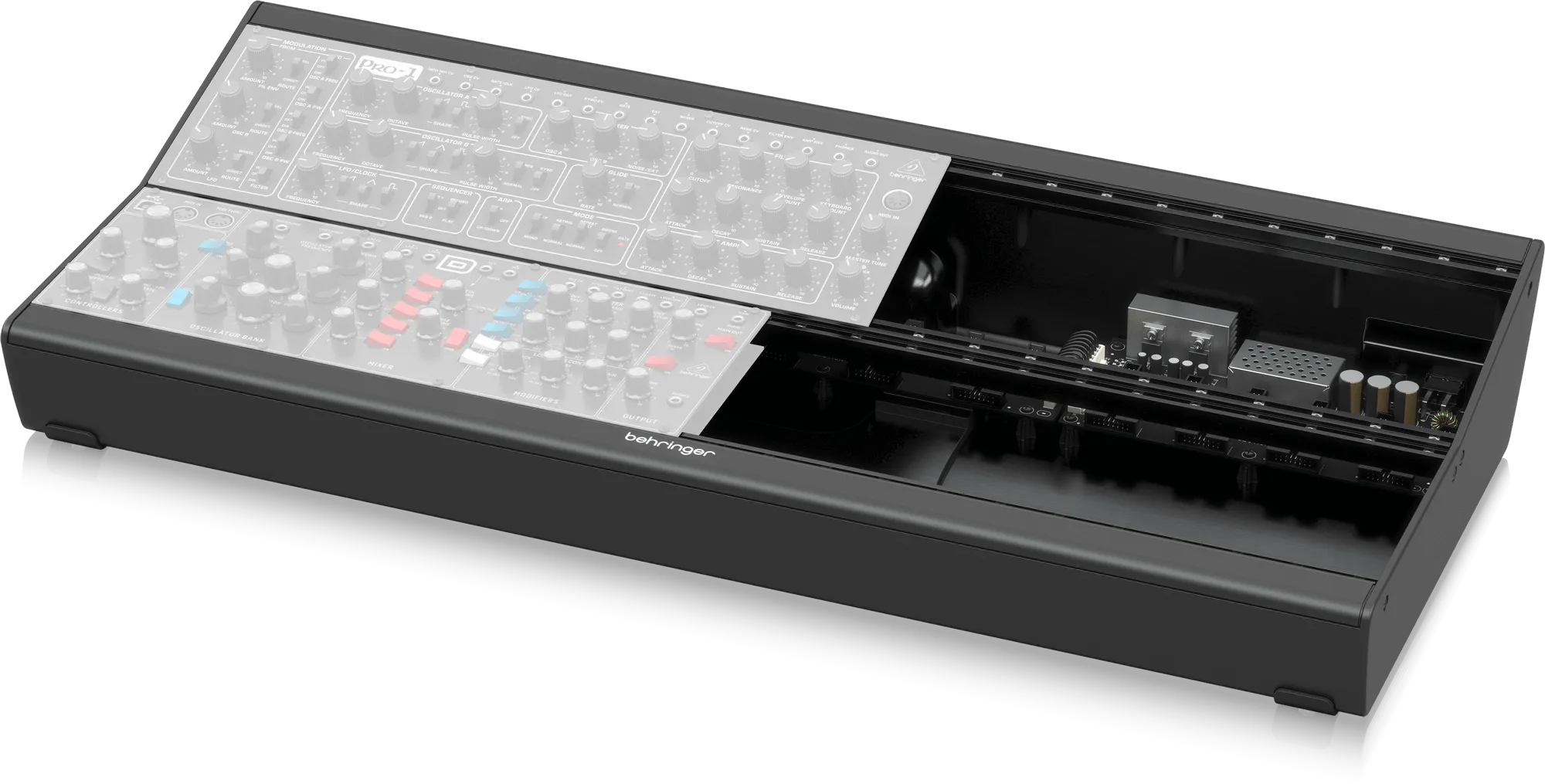

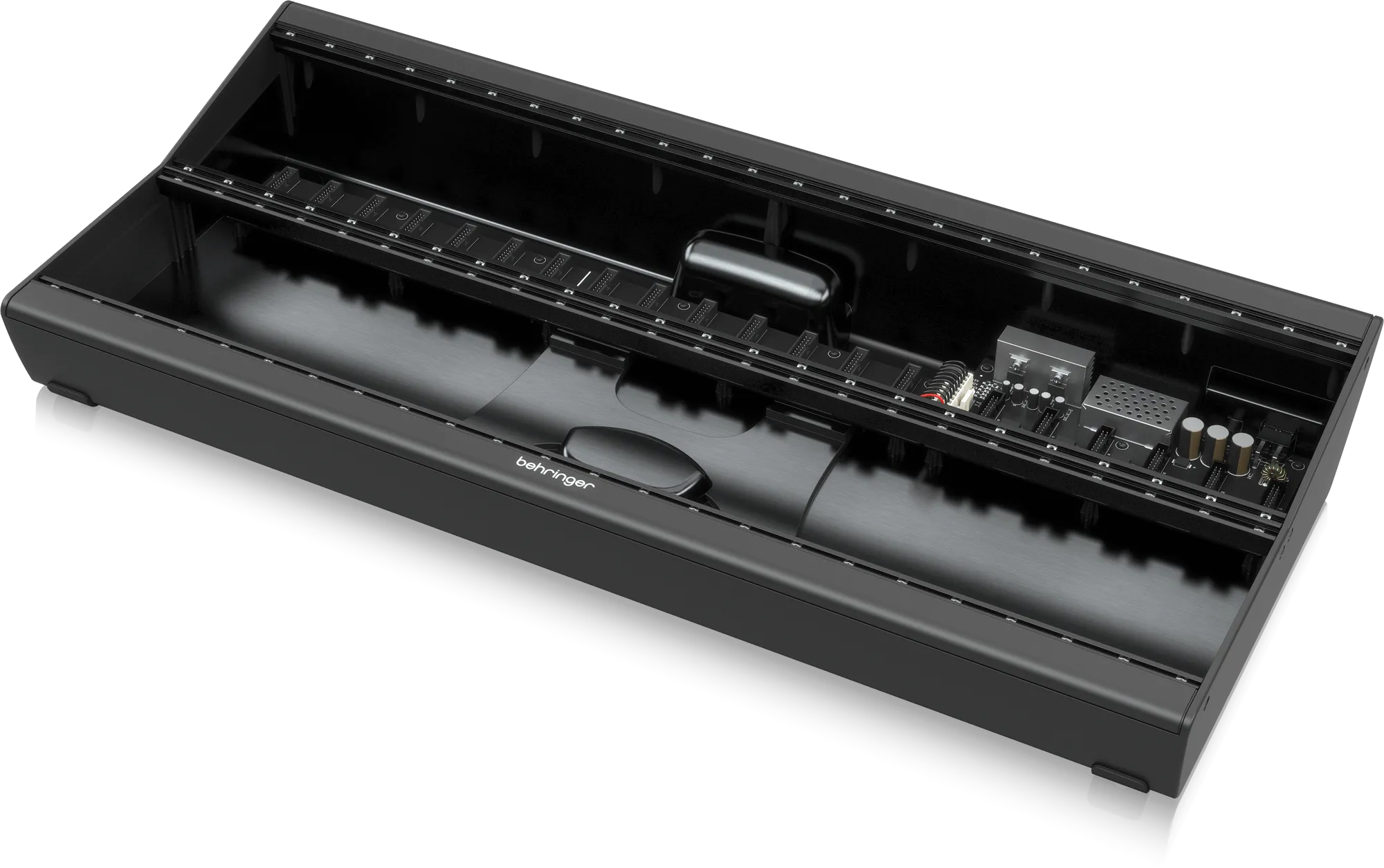

The Eurorack GO case from Behringer houses two rows of 140 HP mounting space for a total of 280 HP. The rugged aluminium chassis features 96 sliding nuts with a maximum module depth from 40 mm (1.57'') rear row to 62 mm (2.44'') in 60% of the front row Over-specified, ultra-low noise power supply.

Power Bus Outputs & Pin Outs

• provides 12 V @ 3 A, -12 V @ 1 A, and 5 V@ 1 A
• 3 Amp Power Supply and 32 Keyed Power Connectors.
• 5 VDC@1A (All Zone Total), Pins 11, 12
• -12VDC@1A (All Zone Total), Pins 1, 2
• 12 VDC@1A (Section A Total), Pins 9, 10
• 12 VDC@1A (Section B Total), Pins 9, 10
• 12 VDC@1A (Section C Total), Pins 9, 10

AU Plug

Product Specs

• Item Number: 14372
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Made In: China
• MPN: BEH-EURORACKGO
• UPC: 653341345431
• EAN: 4033653031455
