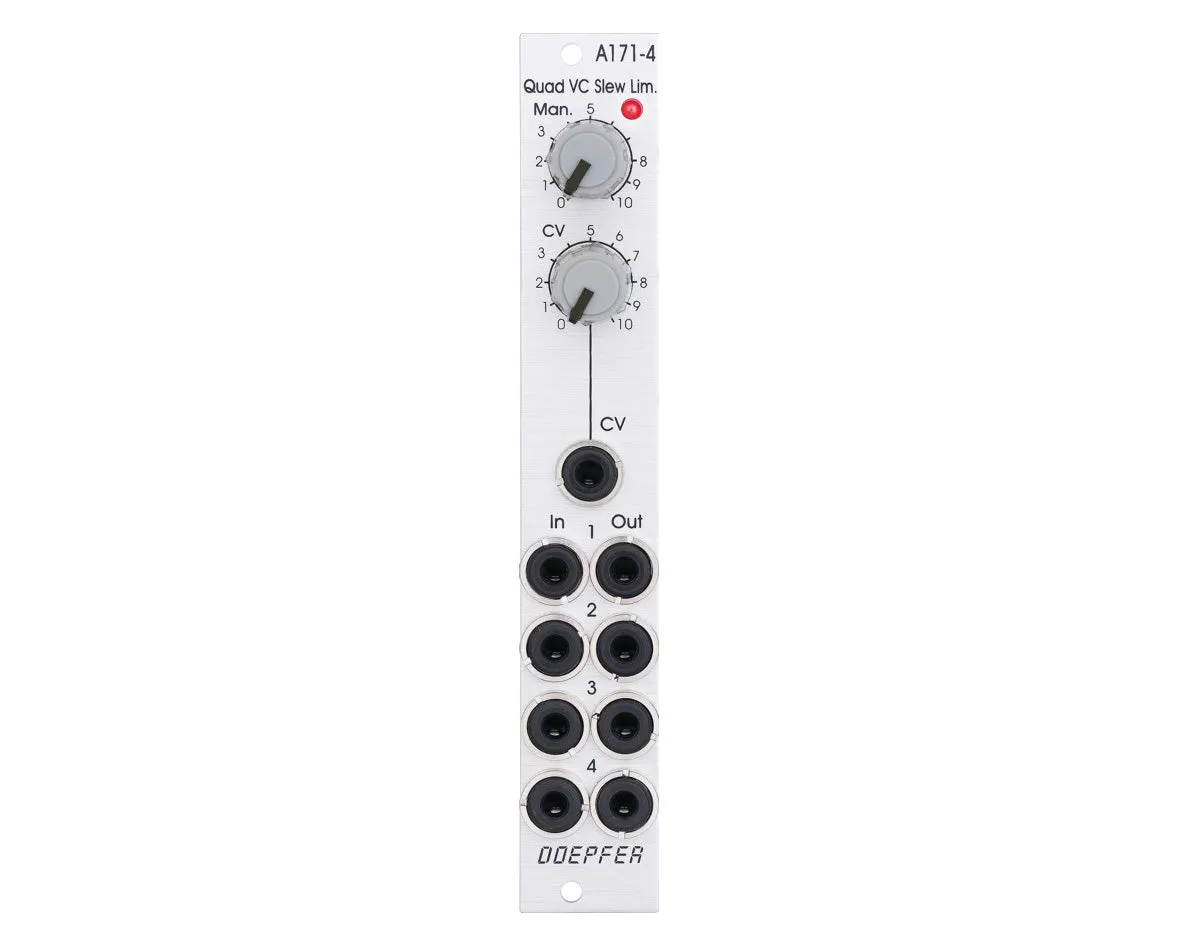

A-171-4 is four voltage controlled slew limiters intended to be used for polyphonic portamento. Manual and external CV control the common slew time. Slew times vary slightly between units due to the tolerances of the LDRs (light-sensitive resistors) and the LEDs, which are used to illuminate the LDRs. Inputs and outputs of the slew limiters are buffered to avoid voltage drops. In addition the slew limiter inputs and outputs are available at internal pin headers for internal pre-wiring of polyphonic patches.

Video:

Product Specs

• Item Number: 27332
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Germany
• MPN: A-171-4
• EAN: 4250711117146
• Modular Grid: Eurorack
• Dimensions*: 4 HP 45 mm deep
• Power*: 40 mA 12V 40 mA -12V 0 mA 5V

* User contributed details
