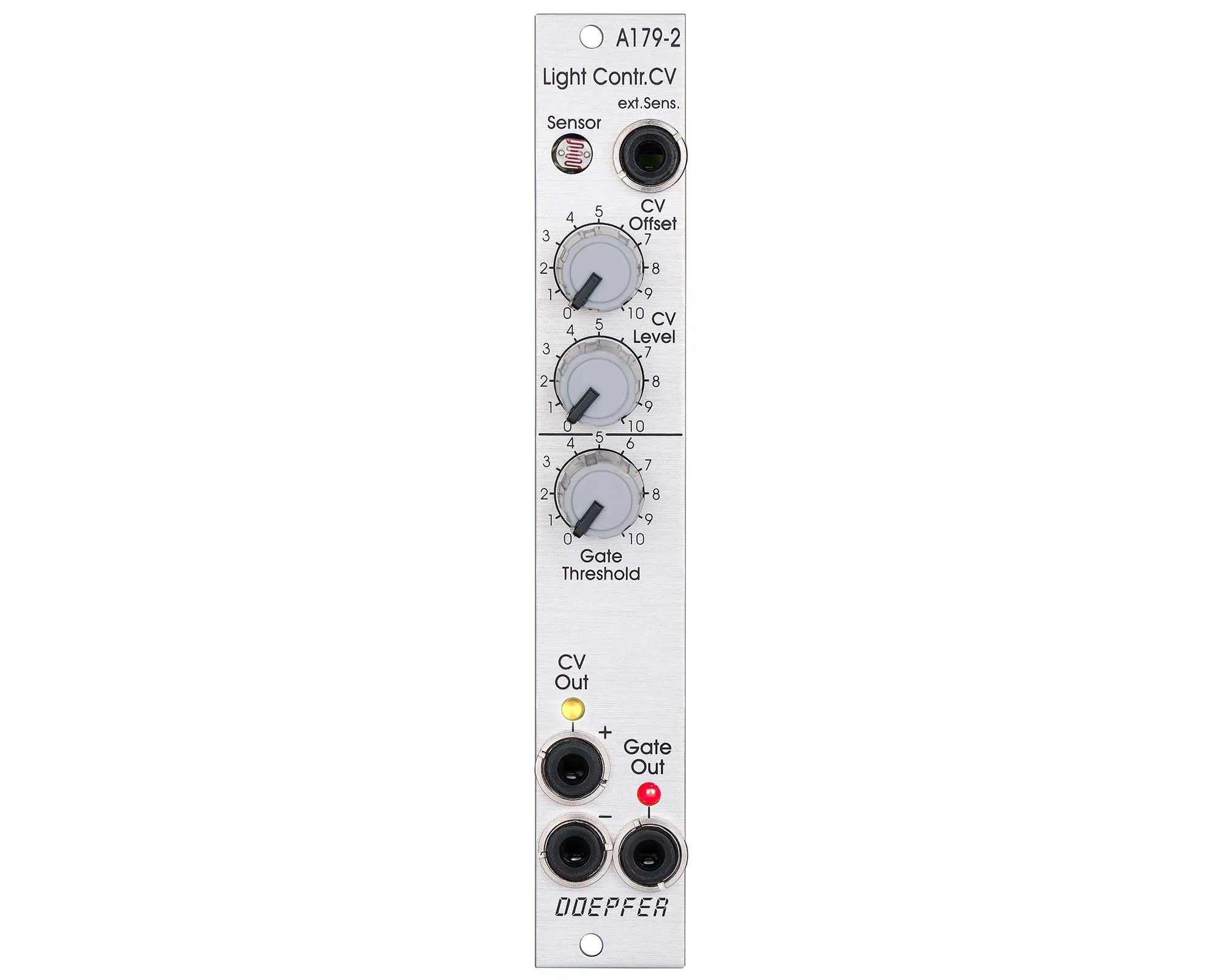

Doepfer A-179-2 can be used to convert different illumination intensities into corresponding analog voltages and a gate signal derived from the analog voltage. It's the successor of the obsolete module A-179.
A light sensitive resistor (LDR) converts the illumination of the internal light sensor into a corresponding analog control voltage. The internal sensor is located at the front panel. Instead of the internal sensor a remote sensor can be connected via a standard patch cable to the module (ext.Sens. socket). An external sensor with a 2 m patch cable (A-100C200) is included. The external sensor is mounted on a small pc board which is equipped also with a 3.5 mm jack socket. The nut of the socket can also be used to mount the external sensor.
Width: 4HP Depth: 30mm Consumption =: 10mA ( 12V) / -10mA (-12V)
Product Specs
- Item Number: 20958
- Make:
- Model:
- Condition:
- Finish: Silver
- Categories: ⇒
- Function:
- Made In: Germany
- MPN: A-179-2
- EAN: 4250711117924
- Modular Grid: Eurorack
- Dimensions*: 4 HP 30 mm deep
- Power*: 10 mA 12V 10 mA -12V 0 mA 5V
