Product Details
＋

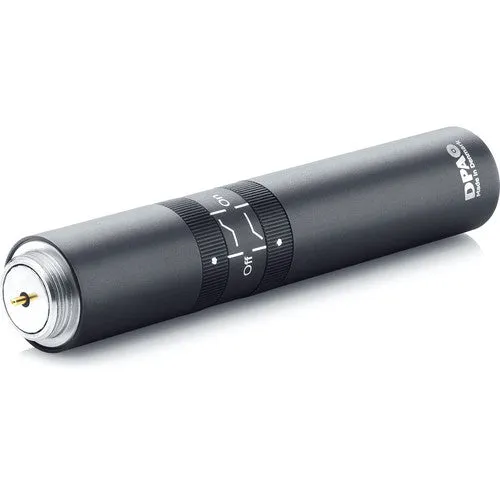

The DPA MMP-B Preamplifier is a preamplifier and output stage for DPA Reference Standard MMC series capsules. The modular capsules attach to the MMP-B and the preamplifier provides an XLR output, high quality output signal and 48V phantom power (via external source).
Compatible with the Following Capsules
MMC4006 Omni Microphone Capsule
MMC4011 Cardioid Microphone Capsule
MMC4015 Wide Cardioid Microphone Capsule
MMC4017 Shotgun Microphone Capsule
MMC2006 Twin Diaphragm Omni Microphone Capsule
MMC2011 Twin Diaphragm Cardioid Microphone Capsule
MMC4011 Cardioid Microphone Capsule
MMC4015 Wide Cardioid Microphone Capsule
MMC4017 Shotgun Microphone Capsule
MMC2006 Twin Diaphragm Omni Microphone Capsule
MMC2011 Twin Diaphragm Cardioid Microphone Capsule
DPA Microphones MMP-B Specs
| Output Connector | XLR-3M. Pin 1: shield, Pin 2: signal phase, Pin 3: - phase |
| Low-Cut Filter | -3 dB: 50Hz |
| Noise | Noise with shorted input, A-weighted: 1.1 µV |
| Power Supply | 48 V Phantom power (± 4 V) Output voltage, RMS: > 1.8V Output voltage, peak: > 2.5V Type of electronic circuit: Active Current consumption: 4.5mA |
| THD | @1VRMS, 1kHz: < 0.5 % |
| Dynamic Range | 124 dB |
| Filters | High boost: 4 dB at 8 kHz. Low cut: First order filter, below 120 Hz |
| Output Impedance | < 150 ohm |
| Output Balance Principle | Signal balanced |
| CMRR | > 40dB |
| Temperature | -40 to 113 °F (-40 to 45 °C) |
| Relative Humidity | Up to 90% |
| Cable Drive Capability | 328' (100m) |
| Color | Matte Black |
| Dimensions | 3.9 x 0.75" (99 x 19mm) |
| Weight | 1.3 oz (38g) |
Packaging Info
| Package Weight | 1 lb |
| Box Dimensions (LxWxH) | 10 x 6 x 3" |
