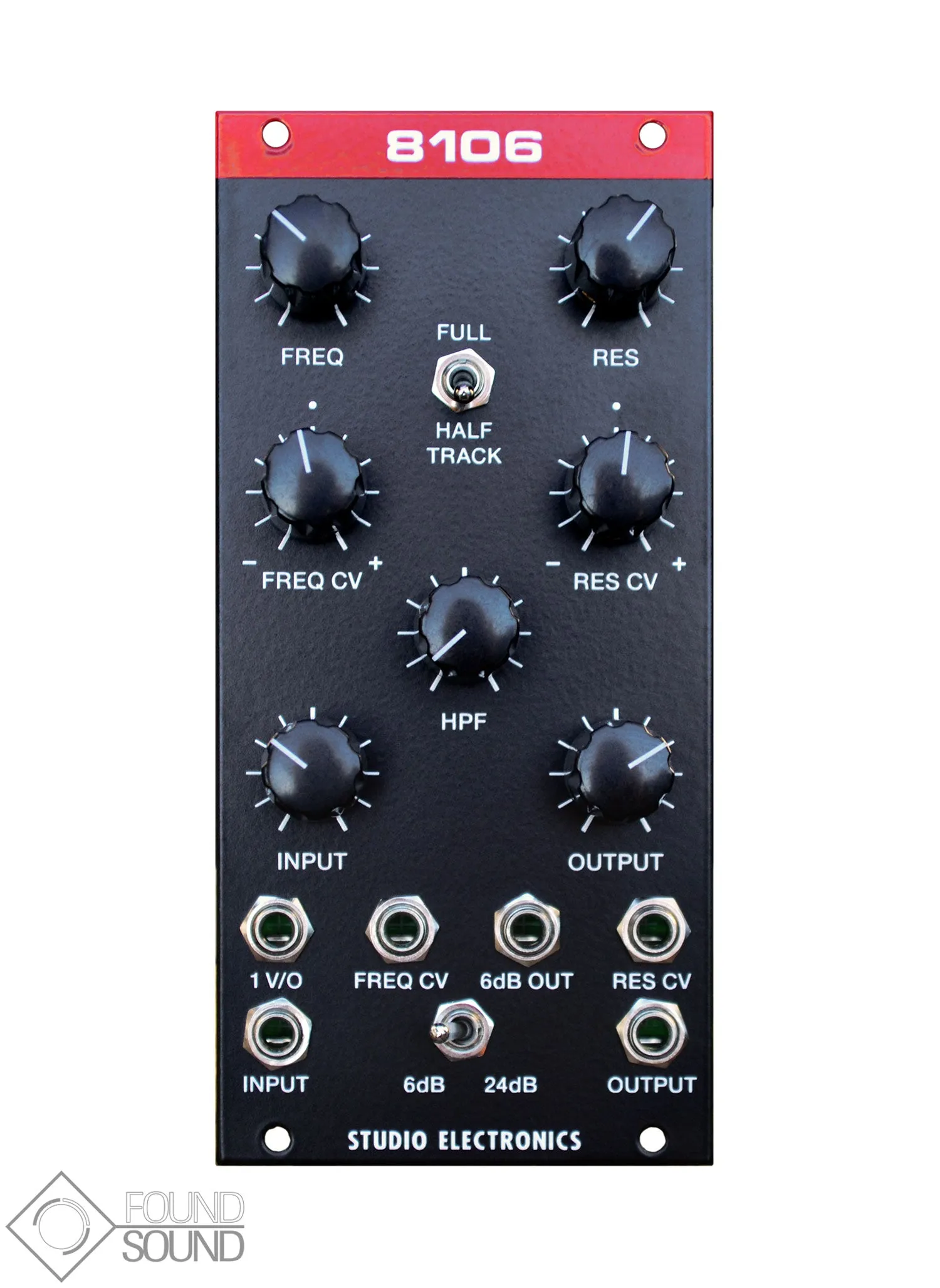

The 8106 is a 12HP 6db/oct hi-pass filter followed by a recreation of the Roland® IR3109 module, which is a 4 pole, 24 db/oct voltage controlled lowpass filter with voltage controlled resonance. Three dual OTAs with similar topology to the BA662 used in the Jupiter 8 (and the IR3109 module) were employed, one amp for the hi-pass filter, four (with added buffers) for the low-pass, and one for the resonance. This filter takes a wide range of input signals, and tracks control voltage extremely well.

Brand new with warranty.

Video:

Product Specs

• Item Number: 9112
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: United States
• MPN: BM-8106
• UPC: 602573344033
• Modular Grid: Eurorack
• Dimensions: 12 HP 38 mm deep
• Power: 40 mA 12V 35 mA -12V 0 mA 5V
